STB Nano 3 4K HDR IP+DVB set-top box

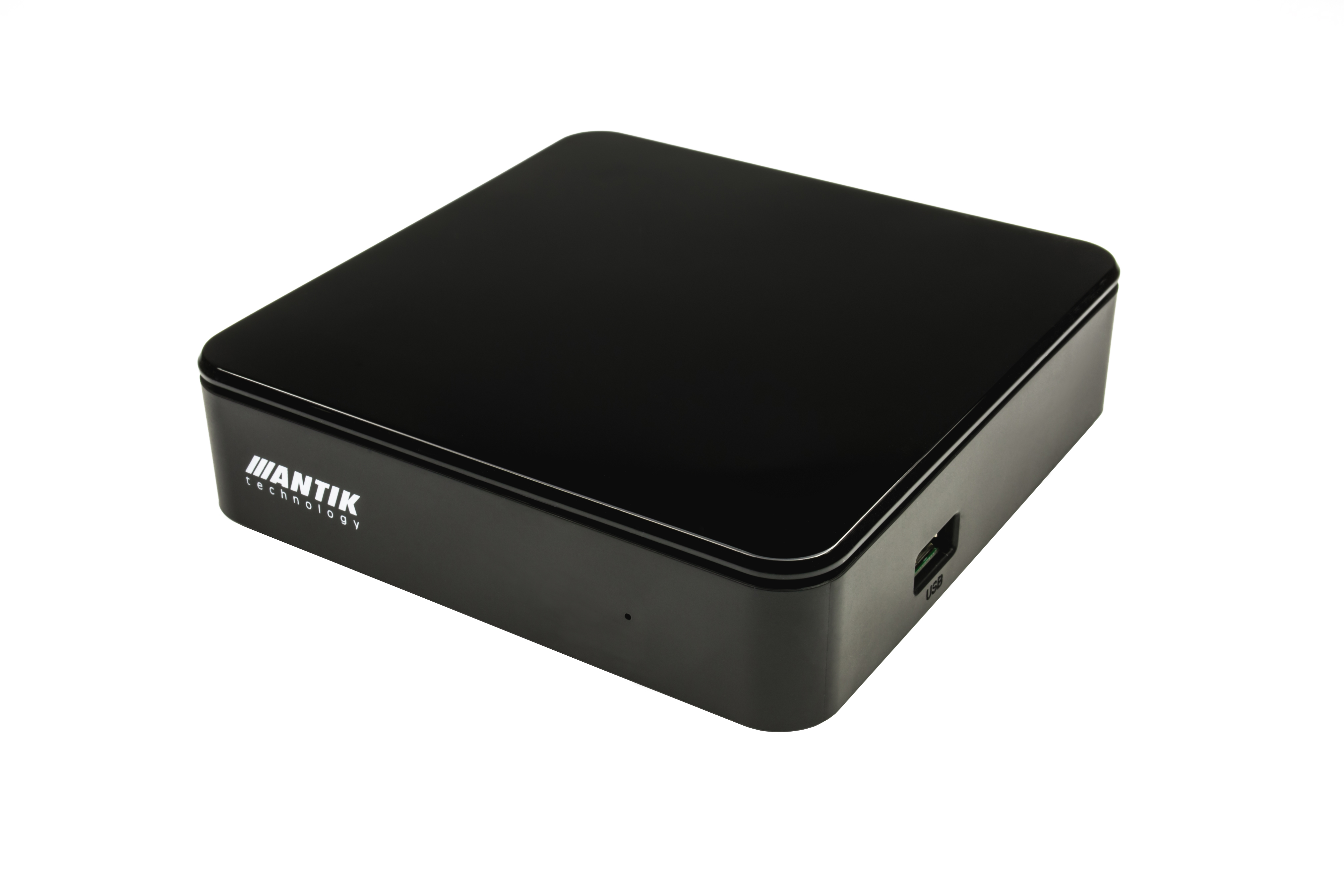

Antik Nano 3

Hybrid/OTT IP+DVB Set-top Box

This ultra cost-effective OTT/ IPTV box combines a compact design with high performance and low power consumption.

ANTIK Technology

KEY FEATURES

  • CPU 4 x Cortex A53 (15000 DMIPS)
  • GPU Mali-450
  • 4K HDR or dual Full HD decoding
  • High Efficiency Compression Codecs Decoding - VP9 Profile 2 Support
  • Wi-Fi 802.11 ac Access Point (optional)
  • Modem
  • SmartHome Z-Wave (optional)



SPECIFICATIONS


Video:

  • H.265/HEVC (10-bit)
  • H.264/AVC
  • VP9 (10-bit), VP6/VP8
  • MPEG-1/2/4
  • VC-1/WMV9
  • Real 8/9/10
  • Divx 3/4/5/6

Audio:

  • AAC (HE-AAC v2 Profile)
  • Dolby digital AC-3)
  • MPEG-1/2 (layer I/II)
  • MP3
  • FLAC, Vorbis

Streaming:

  • MPEG-2 transport stream
  • Multicast or Unicast
  • TS over UDP
  • TS over RTP
  • HTTP streaming
  • RTSP (with trick play support) for VoD
  • Teletext and subtitles
  • IGMP v2 & v3
  • HLS

Inputs/Outputs:

  • HDMI 2.0a
  • AV output (CVBS, L+R audio)
  • TOSLINK (S/PDIF optical audio interface)
  • 1 x RJ45 (Ethernet 10/100 BaseTx)/4 x RJ45 (Nano 3 Giga)
  • 1 x USB 3.0 + 1 x USB 2.0
  • CI Slot (Nano 3S)
  • external IR sensor
  • antenna RF input (only on selected models)

Accessories (optional):

  • IR2 Extender cable
  • AV Cable adaptor
  • RCA/SCART cable
  • Ethernet Cable
  • Full size/Compact Keyboard
  • Bluetooth Remote control
  • WiFi Adapter

Technical Specifications:

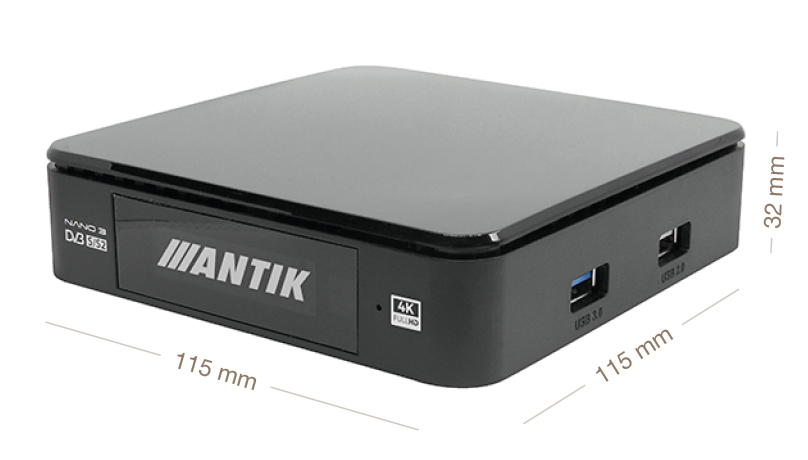

  • Dimensions 115 mm x 115 mm x 32 mm (without packaging)
  • Power consumption 6W
  • Power Input 12V/1A DC
  • Power Adaptor 90-250V/50-60 Hz AC
  • Operating Temperatures 0°C to 45°C
  • Operating Humidity 8%-95% (non-condensing)

CAS/SCRAMBLING/DRM

  • AntikCrypt
  • Conax
  • Widevine

Software Integration:

  • Operating system Linus 3.18/4.4
  • Copy Protection HDCP 2.2
  • Ekioh SVG integrated

Applications:

  • Telco IPTV
  • Hotel IPTV
  • OTT IPTV
  • DTH
  • Digital Signage

Hardware:

  • CPU: HiSilicon Hi3798MV200 4 x ARM cortex-A53 (15000 DMIPS)
  • GPU: ARM Mali-450
  • DRAM: 1GB DDR4
  • Flash: 8GB eMMC
  • Wi-Fi: 802.11 b/g/n (2.4 GHz, 1T1R, 150M)
  • 868 MHz SmartHome gateway (optional)
  • DVB-S/S2/T/T2/C tuner (optional)
  • CAS Card reader slot (optional)
  • Modem

Middleware:

  • ANTIK MaxIM Middleware 2.0

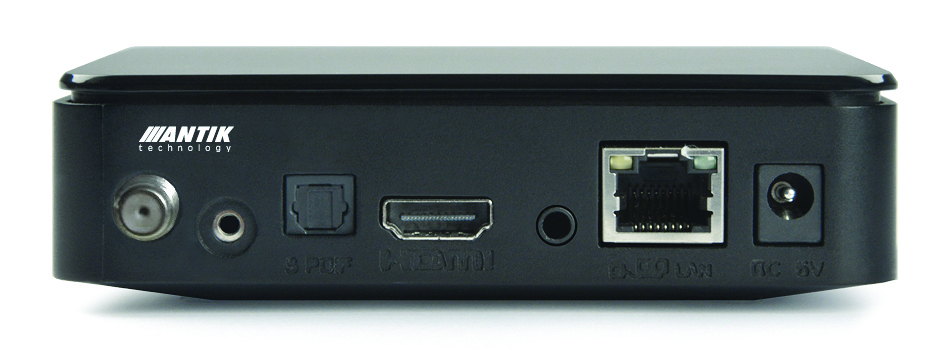

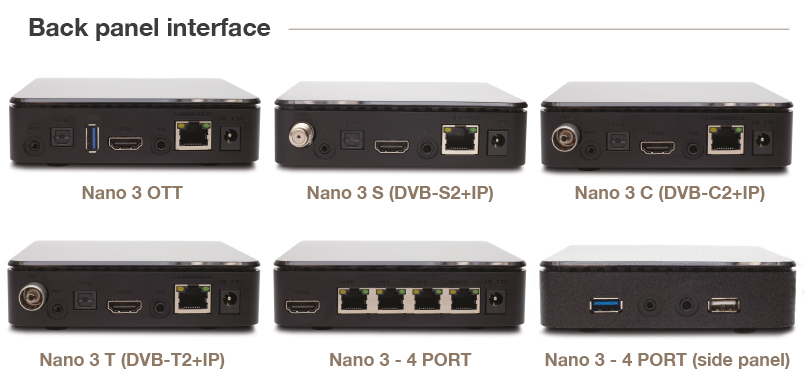

Back Panel InterfaceANTIK Technology















Nano 3 Giga
ANTIK Technology

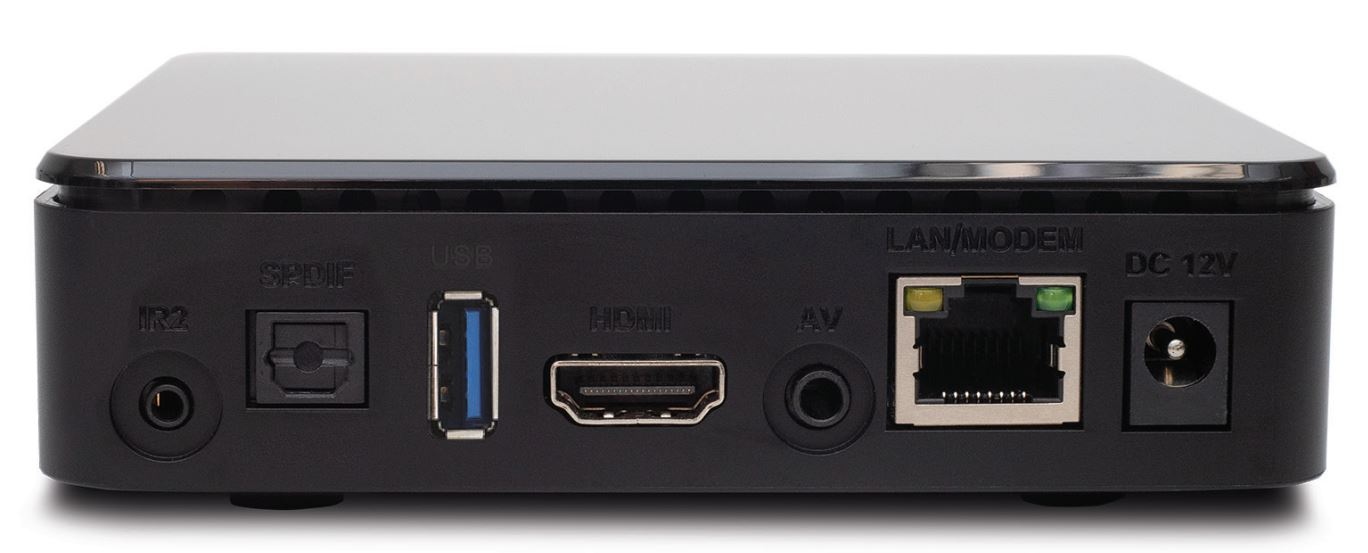

Nano 3 OTT
ANTIK Technology

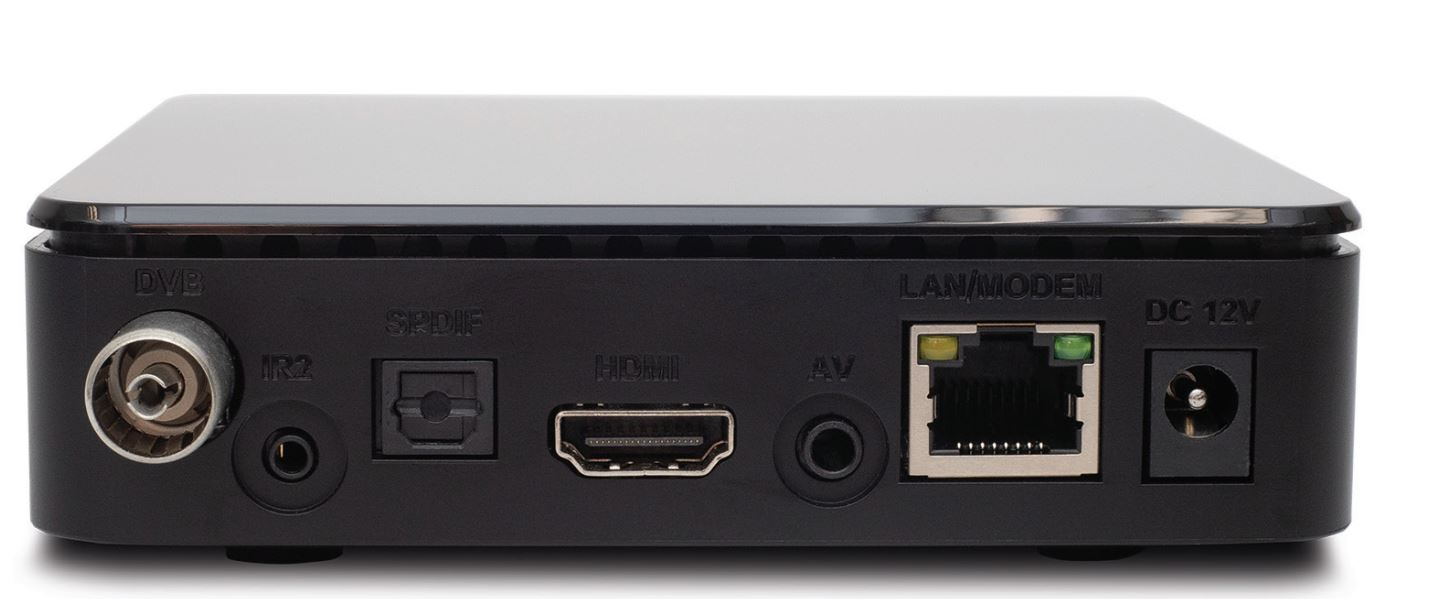

Nano 3C (DVB-C2+IP)

ANTIK Technology
Nano 3T (DVB-T2+IP)
ANTIK Technology

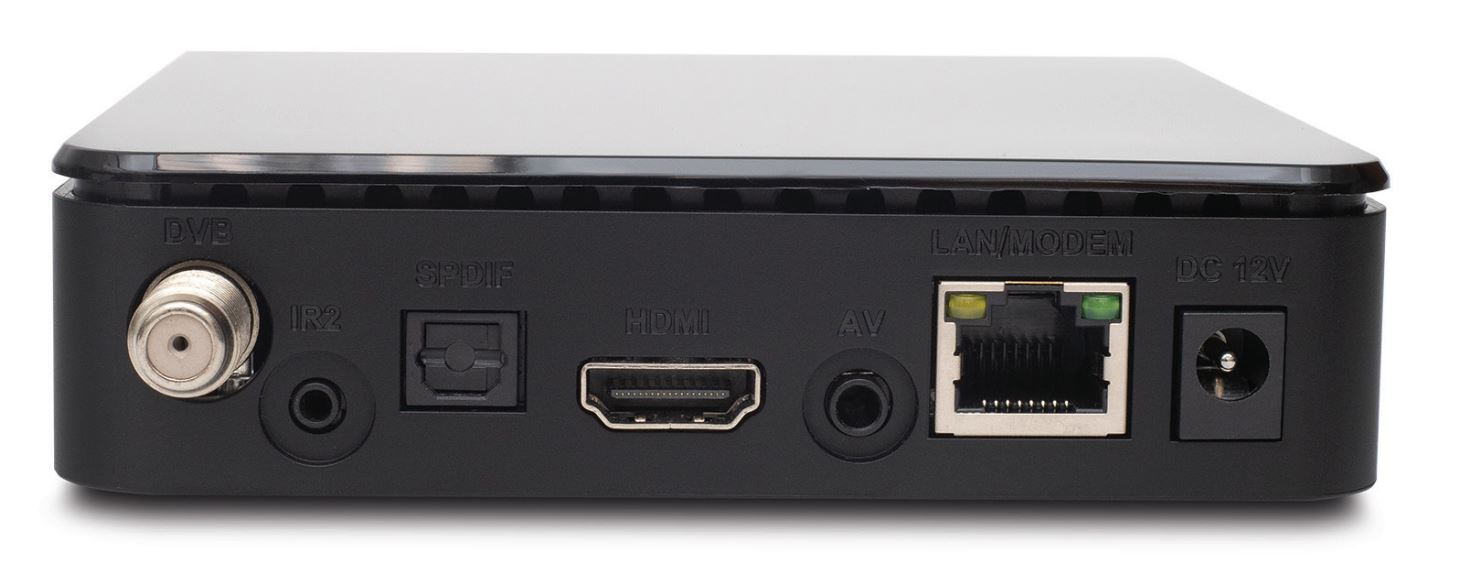

Nano 3S (DVB-S2+IP)

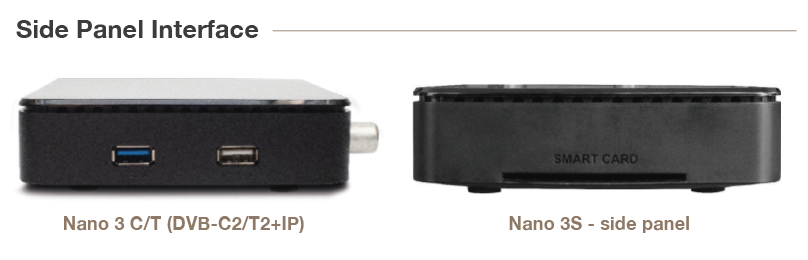

Side Panel Interface

ANTIK Technology

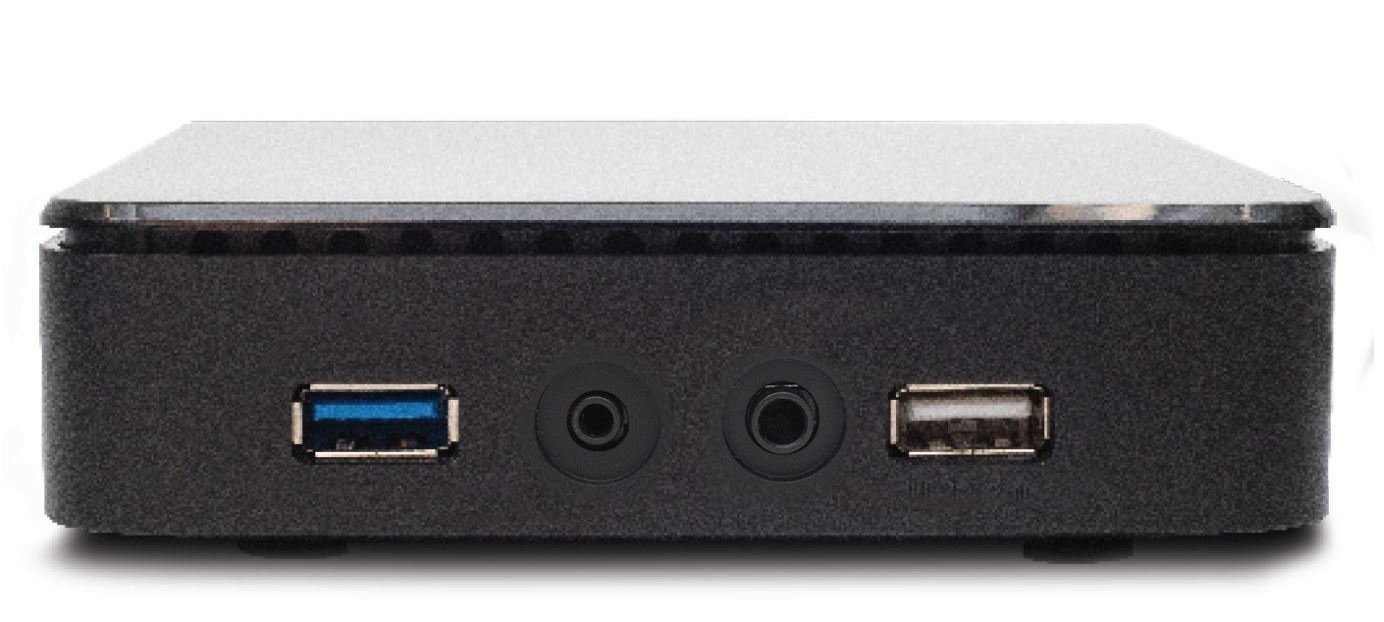

Nano 3 Giga
ANTIK Technology

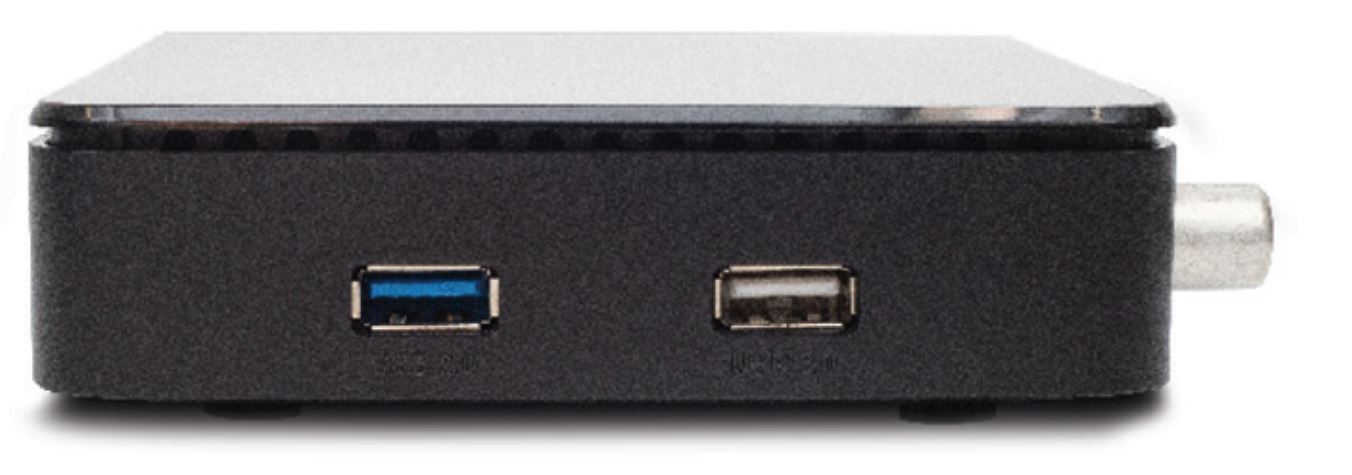

Nano 3C/T (DVB-C2/T2+IP)
ANTIK Technology
Nano 3S (DVB-S2+IP)
