IPTV Solution all-in one

ANTIK Technology

Antik IPTV Demokit offers you the possibility to check all the important features of Antik products. It serves as proof-of-concept of your next IPTV project and gives you chance to become familiar with major SW and HW components.

Demokit you can easily run in your network or lab.Preinstalled OS Nano PC with all necessary SW servers such as IPTV Management Server, EPG, Streaming Server, Hospitality Suite, etc. are all part of delivery. 2 4K set-top boxes enabled to use on public internet as well as in multicast network are included. Pre-recorded content includes SD and HD streams, radios, TV archive. Technical support covers (incl. in price) all necessary help with IPTV demokit setup



UHD, HD & SD streams

·         Catch up TV/TV Archive
·         Timeshift
·         MediaPlayer
·         VOD
·         Hospitality IPTV
·         Event navigation
·         Housekeeping Management
·         TV Plugins
·         EPG
·         Digital Signage
·         IPTV Management MaxIM
·         SmartHome included




State-of-art User Interface

Easy operation for your SmartTV applications. Browsing web pages will be fast with embedded trackball. Browse the internet without turning the TV off.

MaxIM Management System

Single Web Interface for all systems setup and control from devices, channels, CMS to signage and housekeeping.






What will you get?

ITEM

DESCRIPTION

QTY

NANO Server with end-to-end demo licensed SW

  • Intel core i3 with HDD 500 GB
  • all services preinstalled -  full IPTV Server environment (Live TV, TV Archive. VOD, IPTV Management System)
  • MaxIM = Antik Middleware 2.0 - GUI, content Management System, Channel Management, Remote Control and much more
  • API Server to connect Antik TV Apps (iOS, Android, Windows), Antik SmartHome App
  • Antik Hospitality Management System
  • Andik Digital Signage System
  • Antik Event Navigation System
  • Live streams (12 x SD TV channels, 2 x HD TV channels, 1 x UHD channel, 5 x Radios, 3 x Cameras)
  • VOD server + content
  • EPG server (with real EPG data), Catch-Up TV archive, (3 days content), Snapshot server, MEdia portal server and more
1 pcs

SET TOP BOX
1x Antik Mini 3
1x Antik Nano 3

  • 4K/UHD video support and crystal clear digital audio
  • High Efficiency Codecs supported
  • 15000 DMIPS performance
  • speedy GUI, Electronic Program Guide with snapshots, Catch-UP TV, VOD, Mosaic
  • SmartHome GW with Z-Wave protocol
  • Segment streaming and buffering for OTT delivery even in low-speed networks
2 pcs

ACCESSORIES
Wireless multimedia IPTV keyboard

  • 2.4G wireless keyboard
  • RF 2.4G Multimedia optical trackball mouse
  • Scroll bar
  • Mini NANO Receiver
  • Ergonomic design
  • Size: 262mm x 113mm x 31mm
  • More info about IPTV Keyboard
1 pcs

ACCESSORIES
5-Port GB Switch

  • 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • IEEE 802.3 x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Supports QoS (IEEE 802.1p) and IGMP snooping function
  • Plug and play, no configuration needed
1 pcs

ACCESSORIES
8 GB Capacity USB Flash Drive

  • 8GB capacity USB flash drive
  • Preinstalled Demo content
  • Designed for Time-shift, PVR and Media Player Demo
1 pcs

ACCESSORIES
Wireless Access Point for multiscreen demo

  • Compatible with IEEE 802.11b/g/n
  • Wireless speed up to 150 Mbps
  • Compatible with almost all 2.4 GHz Wi-Fi devices
  • Supports AP, Router, Client, Bridge and Repeater operation modes
  • Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
  • To connect Antik SmartApps over wifi
1 pcs

USB ETH Adapter

  • USB ETH external adapter RJ45
  • ETH#1 for internet, ETH#2 for streaming to mobile devices
2 pcs

ACCESSORIES
ETH cables (2m)

  • RJ45 ETH cables standard type of connector for network cables
3 pcs

ACCESSORIES
Travel adapter for EU/UK/US

  • Compatible with most appliances and with electricity converters and transformers for international use
1 pcs

ACCESSORIES
  AntikSTB Debug cable

  • USB to RS232 cable (1.2m) & Antik Cable (0.2m), use for low-level firmware update
1 pcs

ANTIK Technology TOTAL PCS 16 pcs
TOTAL WEIGHT 5 kg
TOTAL PRICE


OPTIONAL:

ITEM

DESCRIPTION

QTY

LCD Display 13.3´´

  • Ideal for quick demonstrations anytime and anywhere
  • 2 HDMI/USB
1 pcs

ANTIK Technology TOTAL PCS 18 pcs
TOTAL WEIGHT 6,5 kg
TOTAL PRICE 860 $



Delivery To *

Request form



Ask for more information

sales@antiktech.com

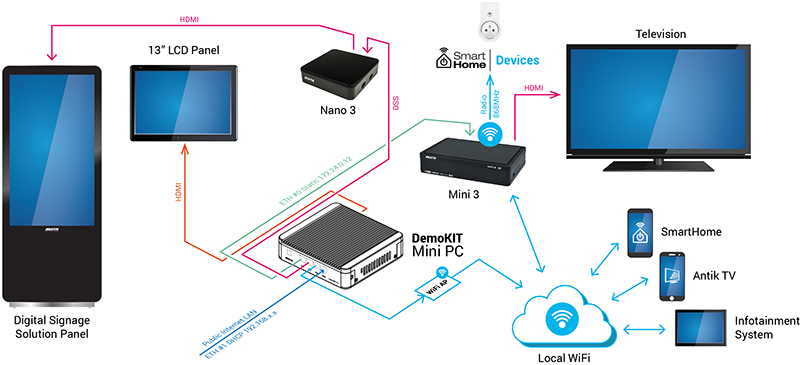

Scheme
