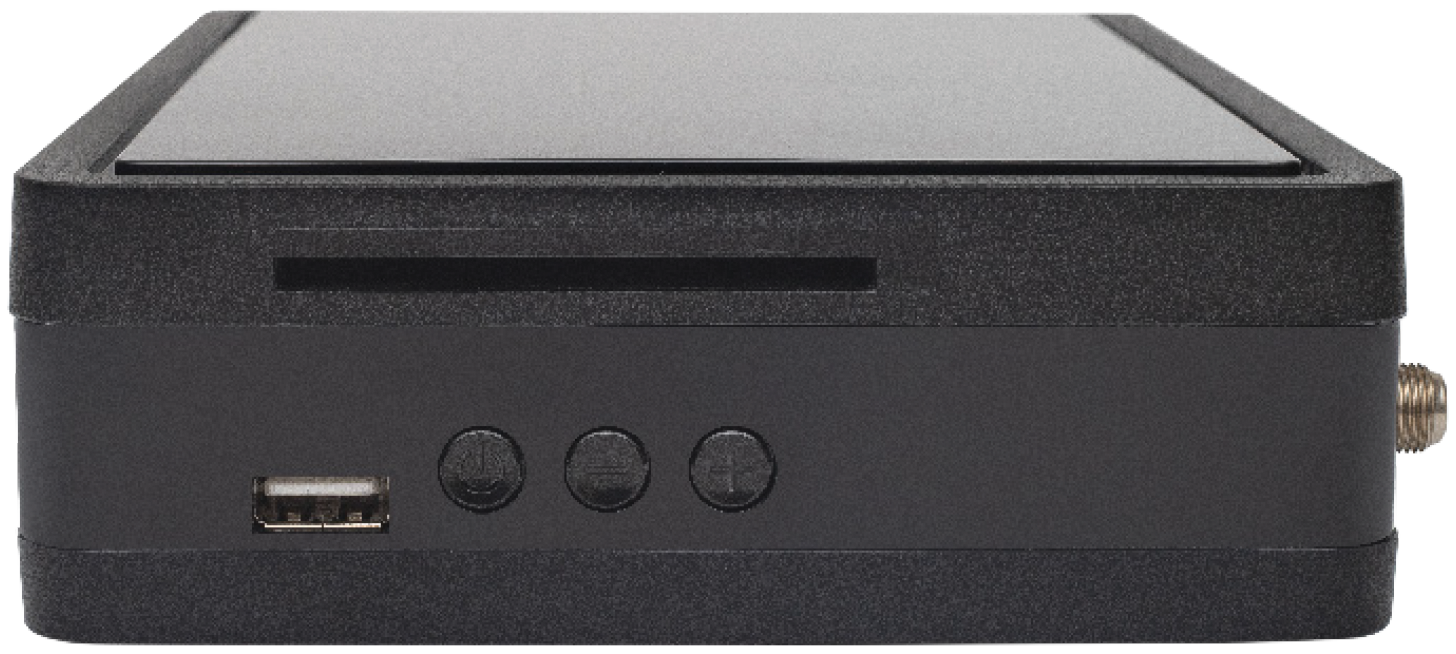

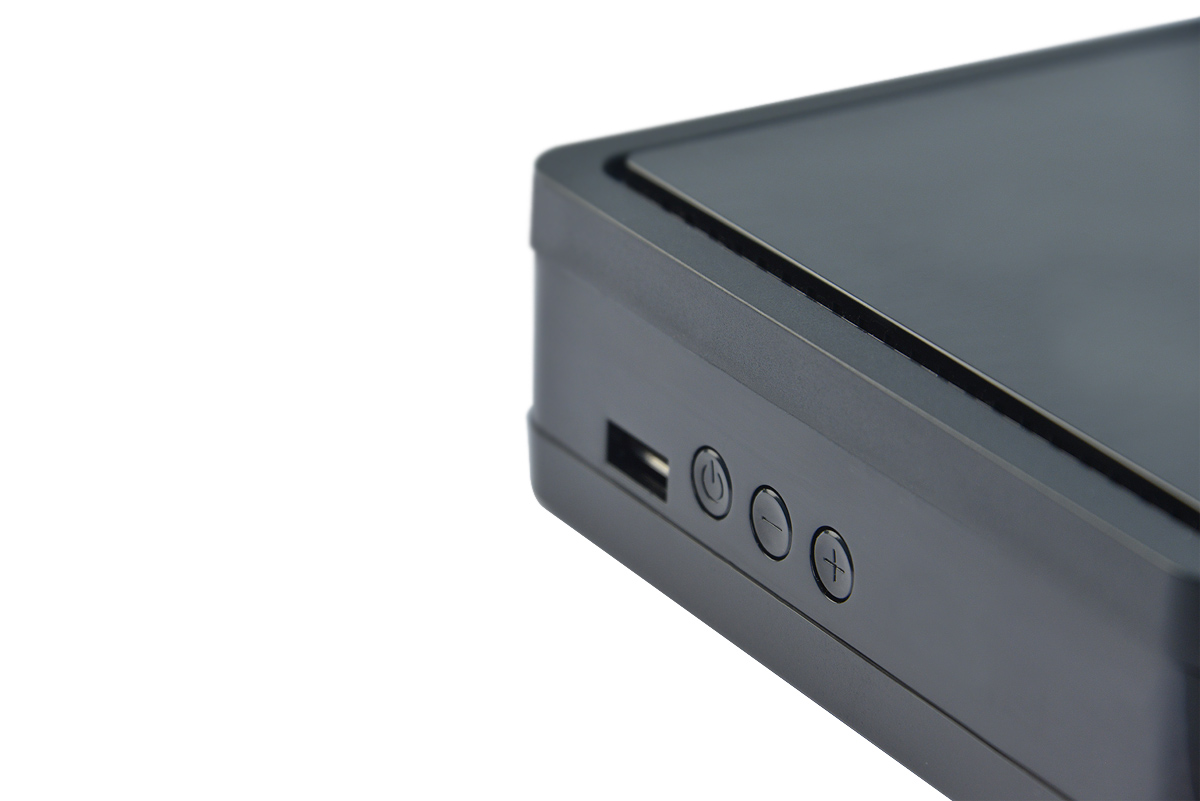

STB Mini 3 IPTV or Hybrid IPTV+DVB 4K HDR Box

Antik Mini 3- IPTV or Hybrid IPTV +DVB Set-top Box

ANTIK Technology

New ANTIK Mini 3 quad-core Linux / Android set-top box with Hi3798C V200 central processing unit has a great features to satisfy highest demands for video decoding, power consumption, price and performance. It is a 4K HDR or dual full HD DVB & IPTV set-top box with VP9 video decoding at 3840 x 2160 resolution at 60fps. Fully integrated with Antik MaxIM management system.



ANTIK Technology

KEY FEATURES

  • Enhanced Host CPU performance (15000DMIPS)
  • Hybrid device with IP + DVB tuner (optional)
  • L2 managed switch up to 1Gbps
  • 4K HDR or dual Full HD decoding
  • Decoding and display capability compatible with HDMI 2.0a
  • Wifi 802.11 ac Access Point
  • Wake on HDMI CEC, IR/BT RC input
  • Smart Home HUB (Z-Wave)
  • Modem






ANTIK Technology

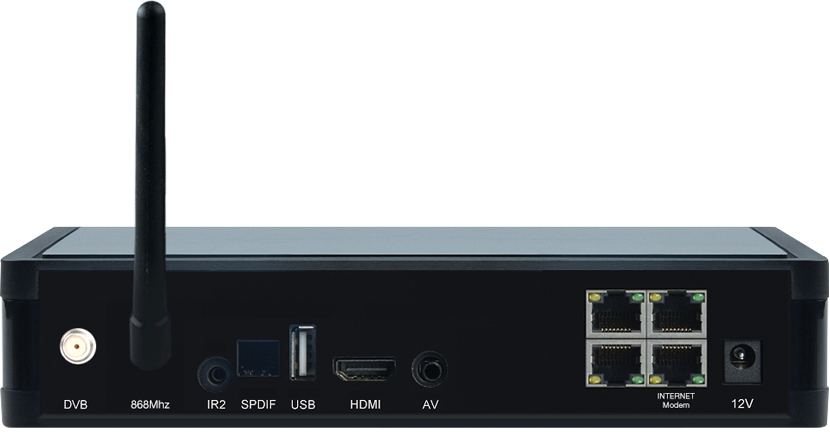

IP+ DVB Tuners (OPTIONAL)

It is possible to have embedded internal Wi-Fi antenna (client mode) and optional Smart Home solution supported by external antenna. Wi-Fi serves as alternate internet connection method in OTT mode or in closed network, it can serve as second STB network adapter to connect to home network resources (DLNA server) while wired ethernet is used to deliver multicast to the box. Wi-Fi functionality can optionally serve as Wi-Fi router as well.



DVB-S2+IP / ETH 1

ANTIK Technology
ANTIK Technology


DVB-T + IP / ETH 1

ANTIK Technology

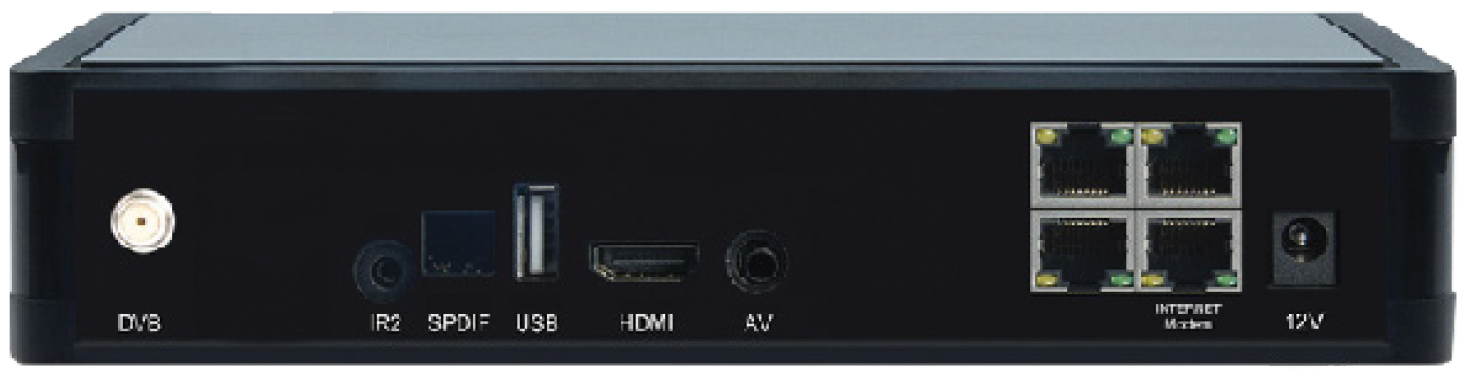

Pure IP / ETH 4

ANTIK Technology




INPUTS / OUTPUTS

  • DVB-C/T/S/S2 Tuner Input (OPTIONAL)
  • HDMI 2.0a
  • TOSLINK Digital Audio interface
  • 1x USB 3.0 + 1x USB 2.0 (optional)
  • 1x or 4x RJ45 (Ethernet 10/100/1000baseTx)
  • 868 MHz transceiver for Smar Home
  • WiFi client embedded- 802.11a/b/g/n/ac up to 867mbps (2T2R)- Optional
  • Infrared Receiver
  • Bluetooth 4.2- Optional





Highlights:

  • 4K (2160p60) video support and crystal clear digital audio
  • Interactive TV Support - Multicast TV, Electronic Program Guide, VOD, Mosaic
  • PVR and Network PVR support
  • Major DRM systems integrated
  • Segment streaming and buffering for OTT delivery even in low-speed networks
  • Hybrid broadcast-broadband TV (HbbTV) support
  • Hardware generated Picture-in-Picture
  • Intelligent low power consumption management
  • Ideal for Digital Signage system

Features:

  • DVB pre-integrated
  • Different browsers integrated – Ekioh (SVG), Webkit (HTML5)
  • HTTP Live Streaming support
  • Fast vector graphics thanks to integrated SVG Engine
  • 4K or dual Full HD decoding
  • DLNA Server&Player support (coming soon)
  • High-Resolution front OLED display (optional)
  • HDD - external through USB (optional)

Video:

H.265 (Main/Main 10 profile@level 5.1)
H.264/AVC (BP/MP/HP@level 5.1)
VP9 (Profile 0@level 5.1)
MPEG4/2/1, VC-1/WMV9, VP8/VP6, AVS, REAL8/9/10, DivX3/4/5/6 and some other legacy codecs
HDR support (HDR10, HLG)
H.264 encoder


Streaming:

MPEG-2 transport stream
Multicast or Unicast
TS over UDP
TS over RTP
HTTP streaming
RTSP (with trick play support) for VoD
Teletext and subtitles
IGMP v2 & v3
HLS

Accessories (optional):

Remote control IR, Blietooth 4.2
RCA/SCART cable
Ethernet Cable
HDMI cable
Full size/Compact Keyboard
WiFi adapter
IR Extender cable

Networking:

L2 switch
support hybrid VLANs

Application:

Telco IPTV
Hotel IPTV
OTT IPTV
DTH



Audio:

 MPEG-1 (layer I/II)
 MP3
 Dolby Digital (AC-3)
 AAC (HE-AAC v2 Profile)
 FLAC
 Vorbis

CPU & Memory:

CPU quad-core ARM Cortex-A53, 15000 DMIPS
GPU ARM Mali-T720
DRAM 2 GB DDR3
Flash 8 GB eMMC

CAS / Scrambling / DRM:

Key Rider
Conax
Widewine

Software integration:

Operating system Linux 3.18/ Android 7.0
Copy Protection HDCP v 2.2 (optional)
Ekioh SVG integrated (optional)

Middleware

ANTIK MaxIM Middleware 2.0 (optional)

Technical Specifications:

Width x depth x height 183 x 137 x 47mm
(without packaging)
Weight 540g (without accessories and packaging )
Power Consumption 8W
Power Input 12V DC
Power Adaptor 90-250V/50-60Hz AC
Operating temperature 0°C to 45°C
Operating Humidity 8%-95% (non-condensing)
868 MHz transceiver for Smart Home
