Multiview Monitoring room

Software based and cost-effective and high-performance tool for IPTV monitoring



The Antik Monitoring Room is a software based and a cost-effective but high performance IPTV monitoring tool, which displays 1 or more streams on submonitors and controls their quality. Every error is displayed immediately in the Log file, where the admin can see when an incident started, ended, in which input it has occured and its description (audio, video, blackout, etc.).

Antiktech

download-iconTry it now! It`s FREE!

Download the Antik Multiviewer trial now!
Test how our IPTV monitoring tool displays and controls the quality of streams.

Try now

Please, register for free trial by filling in the form bellow. Download links will be sent to your e-mail address together with further instructions.




ANTIK Technology

Brief Introduction

  • Software based and cost-effective but high-performance IPTV monitoring tool

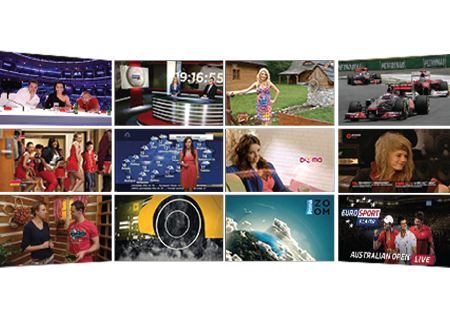

  • Supports a powerful mosaic overview for multiple services
  • Supports various alarm detection to ensure QoE and QoS
  • Provides a scalable pricing policy for an easy entry and extension
  • UDP, RTSP protocols in format TS, RTSP, RTMP, HTTP streaming
  • SNMP support
  • Antiktech

ANTIK Technology


KEY FEATURES

Video

  •  MPEG2
  • MPEG4 part2
  • H.264/AVC
  • AVS



Resolution

  • SD
  • HD



Detections

  • freeze frame
  • black
  • color bar
  • audio loss
  • video loss
  • loudness



Audio

  • MPEG1/2
  • AAC
  • AC3
  • Dolby 5.1



Capacity

  • 8/32/48
  • 64/80/ULT



Alarm

  •  OSD (on-screen visual alarm)
  • Alert tone
  • Database records

IP Source

  • UDP
  • RTP
  • RTSP
  • RTMP
  • HLS


OS

  • Windows 7 64bit
  • Windows 7 Professional / Ultimate



Log

  • Alarm log storage
  • Query by time/ program name/ error type


 OTHER FEATURES

  • Web based control
  • Layout tool provide templates for quick launch, also customization template with which customer could draw rectangles flexibly
  • Support both Analog and digital Clock
  • Support GIF picture and customized TEXT
  • Support main TV wall and secondary TV wall
  • Support round-robin
  • Multiple rotating mosaic screens



ANTIK Technology     See how all IPTV servers correlate


ANTIK Technology


BOM for Multiviewer Hardware

Source

HW Configuration

OS & Database

<30CH

CPU: 1.4GHz or advanced

Microsoft Windows 7 32bit/64bit

Memory: 2GB or more

Microsoft Windows Server 2008 R2(64bit)

HDD: 30GB or more

MySQL(Alarm log record)

Graphic Cardsupport DirectX 9.0c or advanced



31~80CH

CPUIntel Xeon E5-2420

Microsoft Windows 7 32bit/64bit

Memory: 6GB DDR3 1333MHz

Microsoft Windows Server 2008 R2(64bit)

HDD1TB

MySQL(Alarm log record)

Graphic Card: NVIDIA GeForce GT210 GDDR3 1GB 64bit



81~160CH

CPU: Dual Intel Xeon E5-2630 @2.3GHz

Microsoft Windows 7 32bit/64bit

HDD: 1TB

Microsoft Windows Server 2008 R2(64bit)

Memory: 12GB DDR3

MySQL(Alarm log record)

Graphic Card:: Gigabyte GV-N210SL-1GI(GeForce GT210 1GB/64bit)
