Antik Mosaic Generator

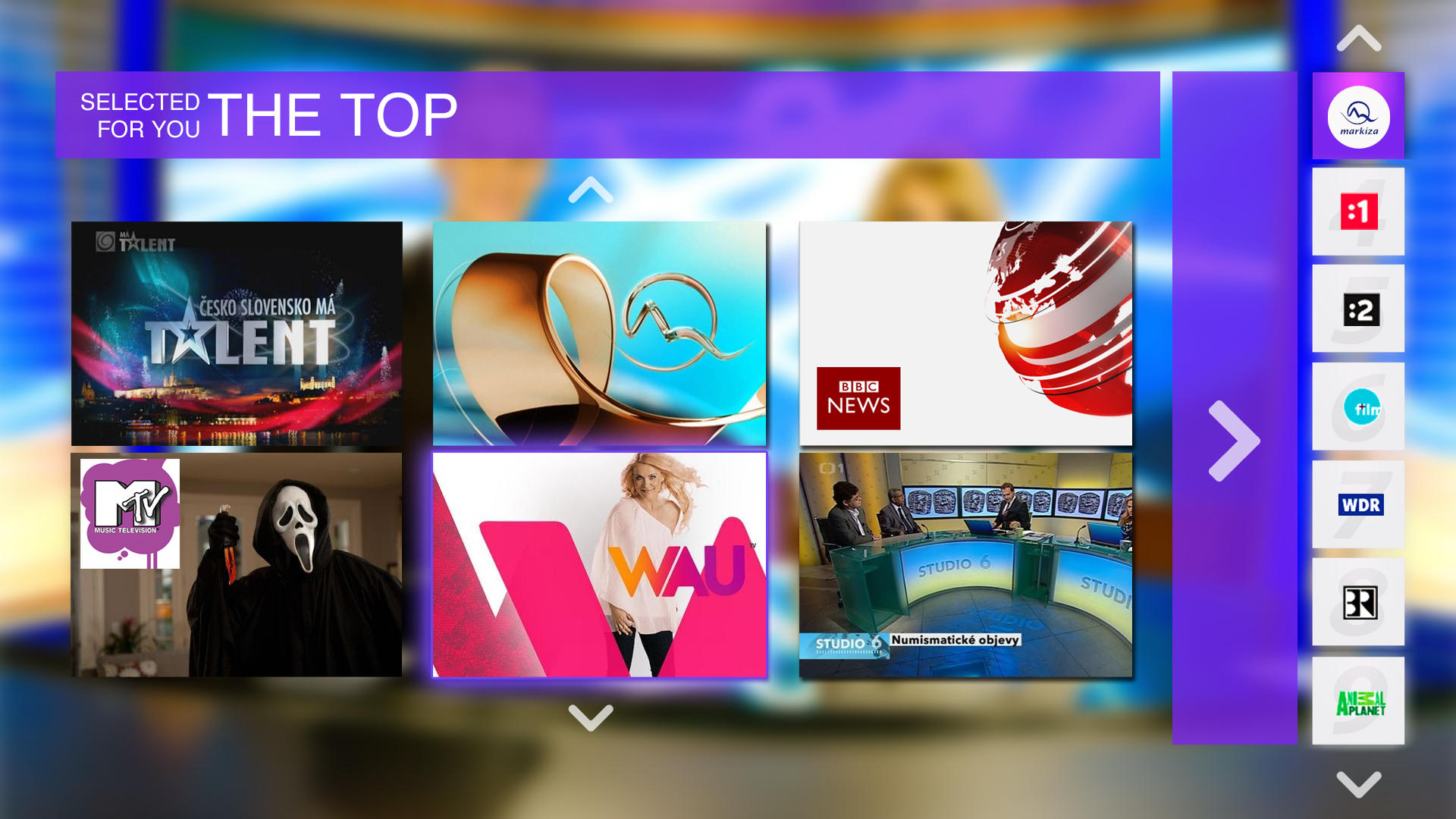

The Antik Mosaic Generator enables to create a single channel selection screen from up to 48 SD or HD channels mixed with EPG metadata. Give your end-users a chance to select the live content they love and allow them to watch a huge number of channels at once. You will get a robust encoder supporting both SD and HD channel sources and a wide variety of protocols for a small portion of the costsn of the typical mosaic systems.


ANTIK Technology



KEY FEATURES

  • Low cost and high performance SW based solution running on standard server HW
  • Up to 48 channels on single screen encoding
  • Integrated with Antik Middleware
  • Complete STB User Interface
  • Electronic Programme Guide Metadata integration on single GUI screen



ANTIK Technology     See how all IPTV servers correlate


Specification



Video

  • MPEG2
  • MPEG4 part2
  • H.264/AVC
  • AVS

Audio

  • MPEG1/2
  • AAC
  • AC3
  • Dolby 5.1

IP Source

  • UDP
  • RTP
  • RTSP
  • RTMP
  • HLS

Resolution

  • SD
  • HD



Capacity

  • 8/32/48
  • 64/80/ULT



OS

  • Windows Server 2008 R2
  • Windows 7 Professional / Ultimate
