STB Mini 2 (IPTV) Telco / ISP set-top-box

Antik Mini 2

ANTIK Technology

The Antik Mini 2 with STiH207 is a cost-effective solution because of its higher perfomance and low power features with a target of < 0.5 W set-top box total standby power in the controller passive standby mode. This device with an enhanced video decoding perfomance supports the dual H.264 HD decoding (2 x HP @L4.1, 1080i/720p). It allows the HD web content video decoding including DivX and MP4pt2 to 1080p30 and 3DTV decoding with HDMI1.4b support.



ANTIK Technology

KEY FEATURES

  • Enhanced Host CPU performance (1200DMIPS)
  • Hybrid device with dual DVB tuner + IP (optional)
  • L2 managed switch up to 1Gbps
  • Dual H264 HD decoding
  • 3DTV decoding and display capability compatible with HDMI1.4b
  • Low power on standby
  • Wake on HDMI CEC, IR/UHF RC input





ANTIK Technology





INPUTS / OUTPUTS

  • DVB-C/T/T2/S2/ISDB-T Tuner Input (optional)
  • HDMI 1.4
  • TOSLINK Digital Audio interface
  • CVBS (3,5mm jack for SCART/RCA cable connection)
  • 1x USB 2.0
  • 1x, 2x, 4x RJ45 (Ethernet 10/100baseTx or 10/100/1000baseTx)
  • Infrared Receiver



ANTIK MINI 2 - PERFECT STB FOR HOSPITALITY IPTV

  • 2nd IR receiver jack for easy STB mounting into room furniture



 ANTIK Technology



ETH1

Low-cost and powerful STB (1020DMIPS) for multicast operation in telco networks or hospitality solutions. Optional external wi-fi which works as second network interface. Useful for separate connection to home LAN and sharing of end-users content e.g. via DLNA.


ANTIK Technology



ETH2

Cost-saving IPTV STB&Switch Combo for multicast operation. Embedded L2 managed switch supports VLAN (even Hybrid VLANs) to separate TV and internet traffic. Second port can be used to connect e.g. home router or 2nd STB. Because of switch inside the box, this combo configuration saves costs of Home Access Gateway (HAG) and simplifies customer premises servicing. Revolutional combo design only available at Antik!

WiFi serves as alternate internet connection method in OTT mode or in closed network it can serve as second STB network adapter to connect to home network resources (DLNA server, Bittorrent server) while wired ethernet i sused to deliver multicast to the box.


ANTIK Technology

ETH2+ DVB-T/T2/C tuner

Usage Scenario 1
Hybrid IPTV+DVB solution for mixed IPTV (multicast) and OTT operation. Embedded L2 managed switch supports VLAN (even Hybrid VLANs) to separate TV and internet traffic. Second port can be used to connect e.g. home router or 2nd STB. Because of switch inside the box, this combo configuration saves costs of Home Access Gateway (HAG) and simplifies customer premises servicing. In OTT operation DVB tuner can be used to receive free-to-air channel and IP network to receive channels over internet (unicast delivery). Box can be configured to nomadic usage – end-user can move his STB from home (with multicast) to any internet network, connect it there and benefit from same channel list as in his home network (channels delivered over unicast/OTT).

Usage Scenario 2
Hybrid IPTV+DVB box for hospitality networks. Live channels are delivered over DVB-C or DVB-T coax network in the building into STB DVB tuner to save bandwidth. Add-on services like VOD, TV Archive or hospitality services are delivered over fixed or wireless local network. Second LAN port can be used to offer guest internet in the room. Especially efficient for older buildings with coax wiring and limited IP availability (e.g. wireless only).



ANTIK Technology

ETH + DVB-S2

Hybrid DVB-S2+ IPTV STB provides the flexibility of getting the best of satellite world & IPTV. The CI card slot enables to receive even encrypted satellite channels & control the subscription of satellite channels through smart cards. With the state-of-the-art Antik proprietary middleware, all the interactive services are possible to be delivered over IP platform including VOD, Catch-up TV/ TV Archive. Option of embeded L2 manage switch provides additional ETH port for connecting various other IP devices without extra equipment. Functionalities like network PVR (nPVR) & Youtube (client) make the integrated OTT live streaming platform stand out thus, reaching the pinnacle of user experience.

  • DVB-S2 + IPTV Applications
  • State-of-art Antik Middleware 2.0 Integrated
  • Antik OTT Streaming Platform Integrated
  • Catch-Up TV (Archive) Integrated
  • Video-On-Demand Integrated
  • Network PVR available
  • YouTube client


ANTIK Technology


ETH4

Ideal Combo IPTV STB&Switch for ISPs and hospitality. Embedded L2 managed switch supports VLAN (even Hybrid VLANs) to separate TV and internet traffic. Ports can be used to connect home router, 2nd STB, IP telephone, etc.. No Home Gateway (HAG) investment in this scenario=significant cost saving during network roll-out. Simplified customer premises servicing, only one device under fully managed remotely instead of two pieces of equipment in typical configurations (HAG+STB). Second network interface (separated from ISPs network) can be created using external wifi (ideal for sharing customer content from his home devices via e.g. DLNA) Revolutional combo design only available at Antik!


ANTIK Technology


Highlights:

  • FullHD (1080p) video support and crystal clear digital audio
  • Interactive TV Support - Multicast TV, Electronic Program Guide, VOD, Mozaic
  • PVR and Network PVR support
  • Major DRM systems integrated
  • Segment streaming and buffering for OTT delivery even in low-speed networks
  • Hybrid broadcast-broadband TV (HbbTV) support
  • Hardware generated Picture-in-Picture
  • Intelligent low power consumption management
  • Ideal for Digital Signage system

Features:

  • Digital Surround Support
  • DVB pre-integrated
  • Different browsers integrated – Ekioh (SVG), Webkit (HTML5)
  • HTTP Live Streaming support
  • Fast vector graphics thanks to integrated SVG Engine
  • DRM support from Verimatrix and Securemedia
  • Dual H.264 HD decoding
  • HbbTV Support (coming soon)
  • DLNA Server&Player support (coming soon)
  • High-Resolution front OLED display (optional)
  • HDD - internal or external through SATA or USB (optional)

Video:

MPEG-2
H.264 (AVC)
VC-1 (WMV9)
MPEG-4 part 2 (DivX, XviD)
Flash (VP6, Sorenson)

Streaming:

MPEG-2 transport stream
Multicast or Unicast
TS over UDP
TS over RTP
HTTP streaming
RTSP (with trick play support) for VoD
Teletext and subtitles
IGMP v2 & v3
HLS

Accessories (optional):

Remote control
RCA/SCART cable
Ethernet Cable
HDMI cable

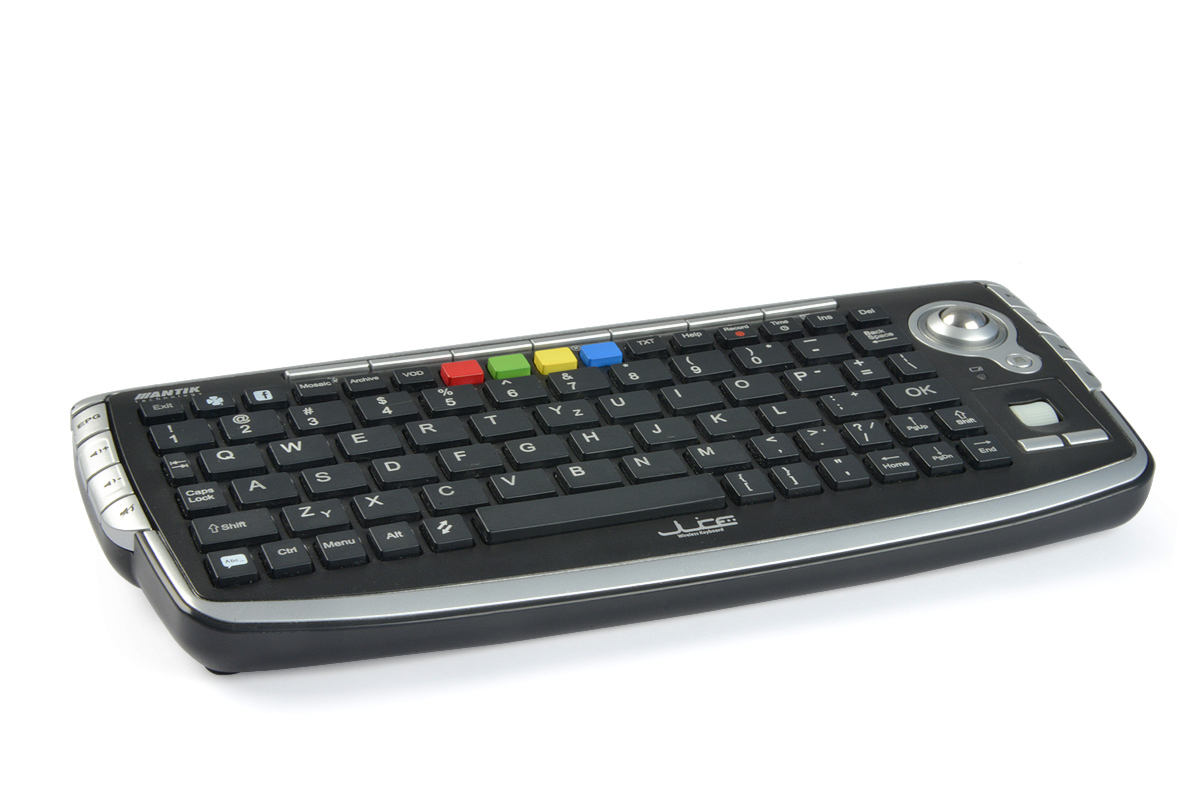

Full size/Compact Keyboard
Juice TV Anywhere Personal H.264 Transcoder
IR Extender cable

Networking:

L2 switch
support hybrid VLANs

Application:

Telco IPTV
Hotel IPTV
OTT IPTV
DTH



Audio:

 MPEG-1 (layer I/II)
 MP3
 Dolby Digital (AC-3)
 AAC (HE-AAC v2 Profi le)
 FLAC
 Vorbis

CPU & Memory:

CPU STiH207/254/256 650MHz, 1020 DMIPS
DRAM 512 MB DDR3
Flash 512 MB

CAS / Scrambling / DRM:

Verimatrix
Key Rider
Conax
Securemedia

Software integration:

Operating system Linux 2.6
Copy Protection HDCP v 1.2 (optional)
Opera, Access, Ekioh SVG integrated (optional)

Middleware

ANTIK Built-in Middleware (optional)

Technical Specifications:

Width x depth x height 203mm x 135mm x 41mm (without packaging)
Weight 540g (without accessories and packaging )
Power Consumption 8W
Power Input 12V DC
Power Adaptor 90-250V/50-60Hz AC
Operating temperature 0°C to 45°C
Operating Humidity 8%-95% (non-condensing)
